Features:
- Provides economical and reliable protection for 3-phase motors
- Sharp increase in resistance near the trip temperature
- Wide trip temperature range from 85°C to 135°c
- Rugged design for installation during motor manufacturing
- Directly senses motor winding temperature
- Rapid response to changes in temperature
- No field adjustment required
- Designed to work with Tl® 40/41/42AA Series Electronic Motor Protection modules
Options:
- Wire length and color
- Trip temperature
Description:

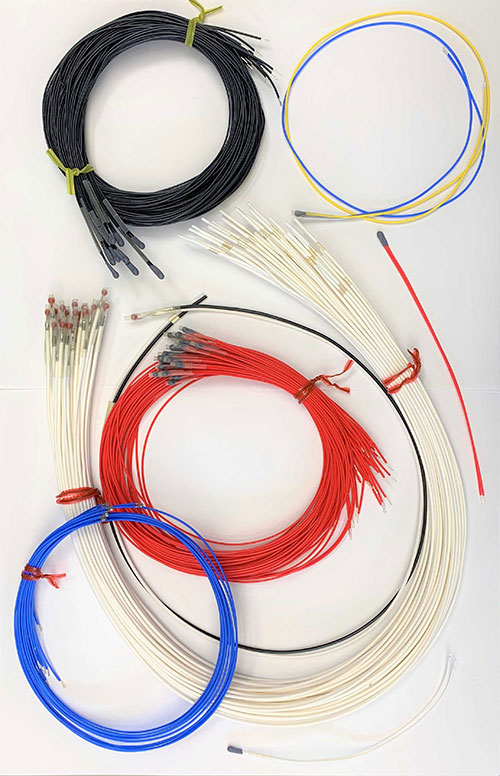

Thermistors Unlimited's PTC Motor Temperature Sensors are designed to provide economic and reliable overtemperature protection for three-phase motors. This assembly utilizes a small PTC disk that has a low base resistance. Once the motor winding temperature reaches the trip temperature of the PTC thermistor, its resistance increases several orders of magnitude for a small increase in temperature. This sharp increase in resistance is easily recognized by the motor protection module or other electronics and can be used to shut down the system before any damage occurs.
Because the PTC assemblies are very small and rugged, they can be located in compact locations where protection is needed, such as directly inside the motor windings, and can withstand standard varnish dip and bake operations, and other handling.
A number of sensors can be connected in series to cover a larger area. If any of the assemblies see an overtemperature condition, it will increase in resistance and indicate a fault condition.

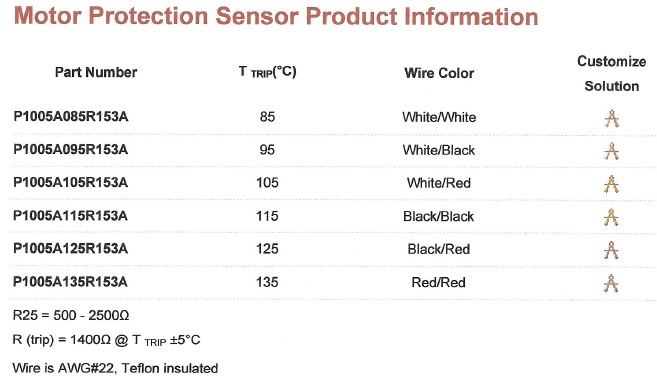

To see our Data Sheets for our standard Motor Temperature Sensors click here.
